The CSB XHRL Series comprises 10 models of 12V top-terminal VRLA-AGM lead-acid batteries. A high-performance upgrade to the HRL Series with stronger high-rate output, mainly for data center UPS.

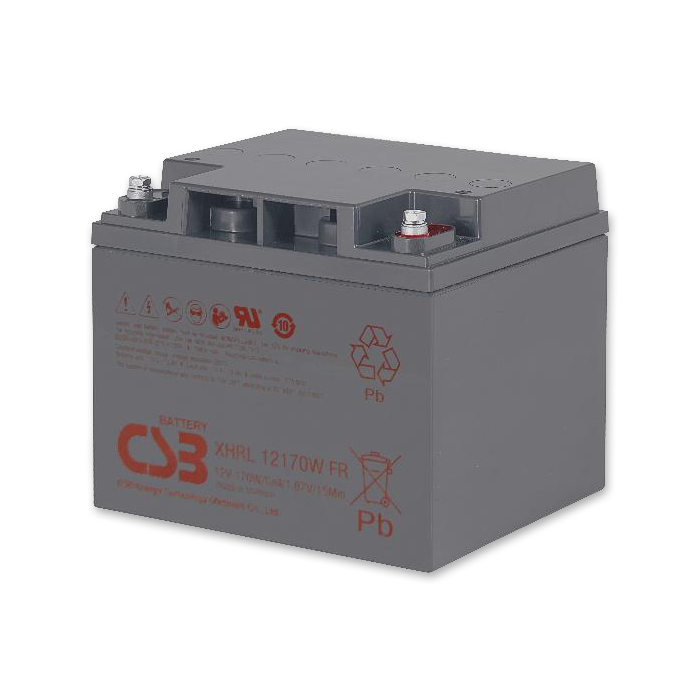

12V Valve Regulated Sealed Lead Acid Battery CSB XHRL12170W (VRLA-AGM)
The CSB XHRL12170W is a 12V valve regulated sealed lead acid battery that uses AGM technology and a pure lead construction, primarily serving data center UPS and other applications requiring high-rate float backup. The battery has a 15-minute rate nominal capacity of 170W, a 5-minute rate of 321.33 W/cell, and a design float life of up to 10 years.

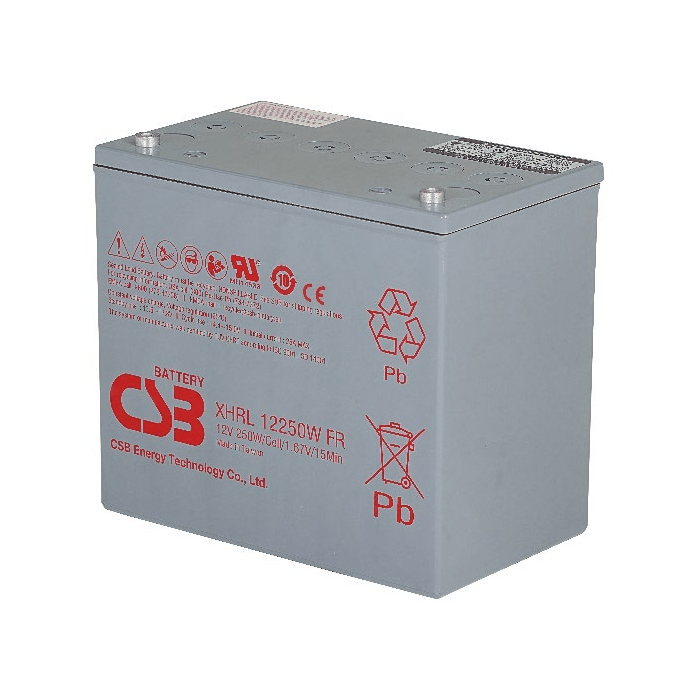

12V Valve Regulated Sealed Lead Acid Battery CSB XHRL12250W
The CSB XHRL12250W from the XHRL series is a 12V Valve Regulated Sealed Lead Acid Battery designed primarily for high-rate backup power applications such as data center UPS. It delivers 250W at the 15-minute rate, 463.17 W/cell at the 5-minute rate, with a float charge voltage of 13.5-13.8 Vdc and a design life of up to 10 years.

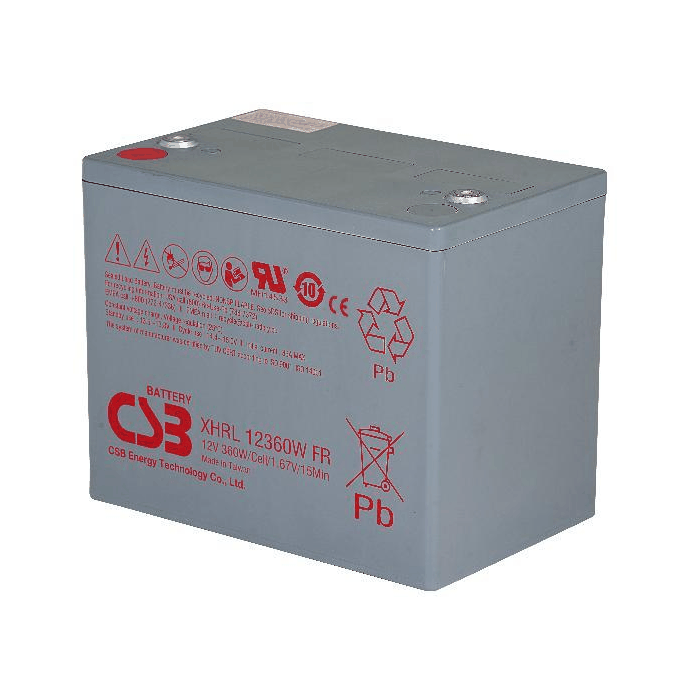

12V Valve Regulated Sealed Lead Acid Battery CSB XHRL12360W
The CSB XHRL12360W belongs to the XHRL series and is a 12V valve regulated sealed lead acid battery, primarily serving high-rate float backup needs such as data center UPS. Its 15-minute rate nominal capacity is 360W, the 5-minute rate reaches 667.17 W/cell, and the design life is up to 10 years.

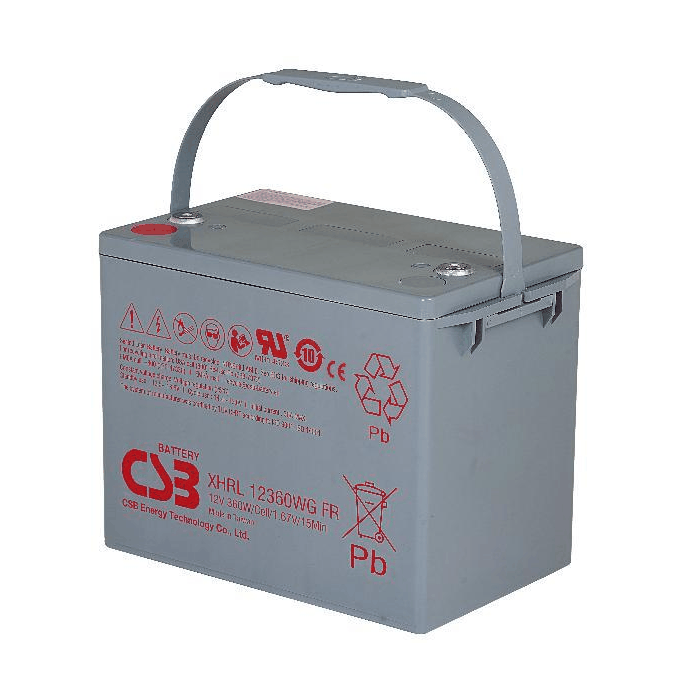

12V Valve Regulated Sealed Lead Acid Battery CSB XHRL12360WG
The CSB XHRL12360WG is a 12V Valve Regulated Sealed Lead Acid Battery in the XHRL series, designed for high-rate float standby applications such as data center UPS. It offers a nominal capacity of 360W @ 15min-rate, 15-minute power of 372.78 W/cell, AGM technology with up to 99% gas recombination efficiency, and a design life of up to 10 years.

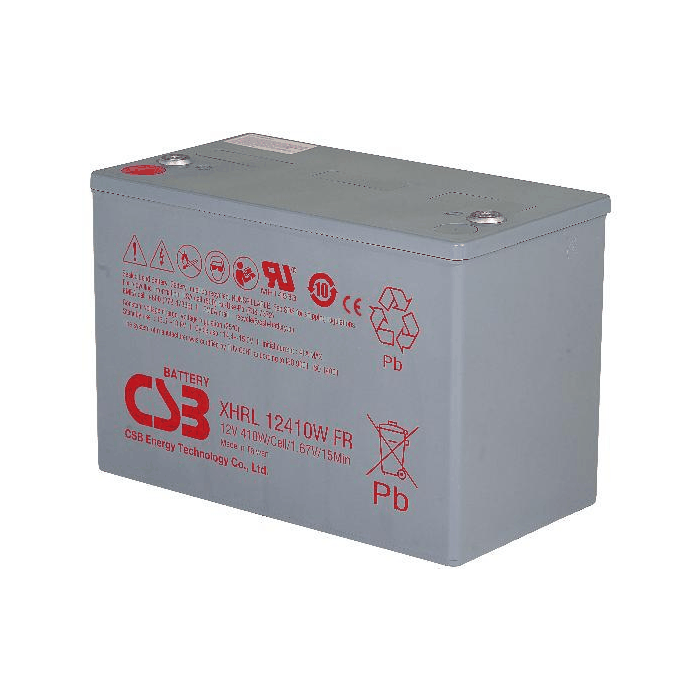

12V Valve Regulated Sealed Lead Acid Battery (VRLA-AGM) CSB XHRL12410W
The CSB XHRL12410W belongs to the XHRL series and is a 12V Valve Regulated Sealed Lead Acid Battery based on AGM technology, primarily serving data center UPS and other applications requiring high-rate float charge backup. Its 15-minute rate nominal capacity is 410W, with a design float charge life of up to 10 years.

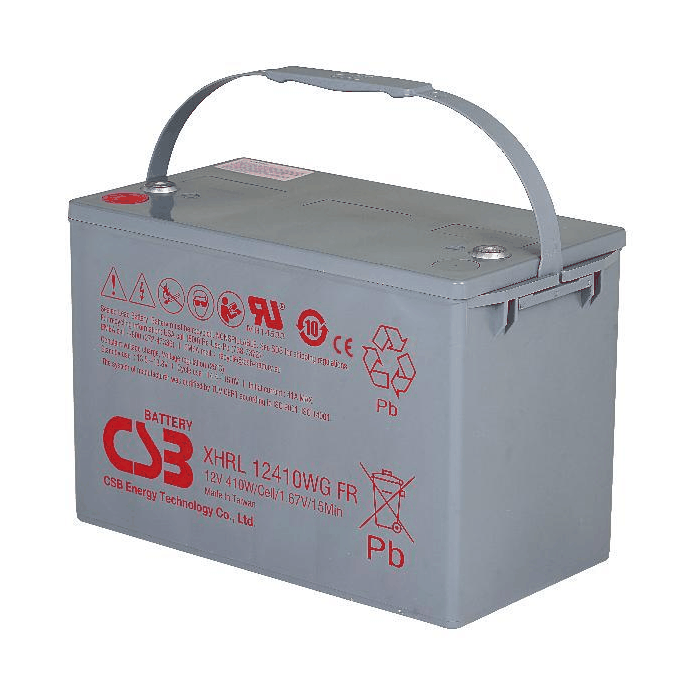

12V Valve Regulated Sealed Lead Acid Battery CSB XHRL12410WG (VRLA-AGM)
The CSB XHRL12410WG belongs to the XHRL series of high rate products. It is a 12V valve regulated sealed lead acid battery that uses AGM technology and is primarily designed for float backup applications such as data center UPS. It offers a design life of up to 10 years and delivers 410W at the 15-minute rate.

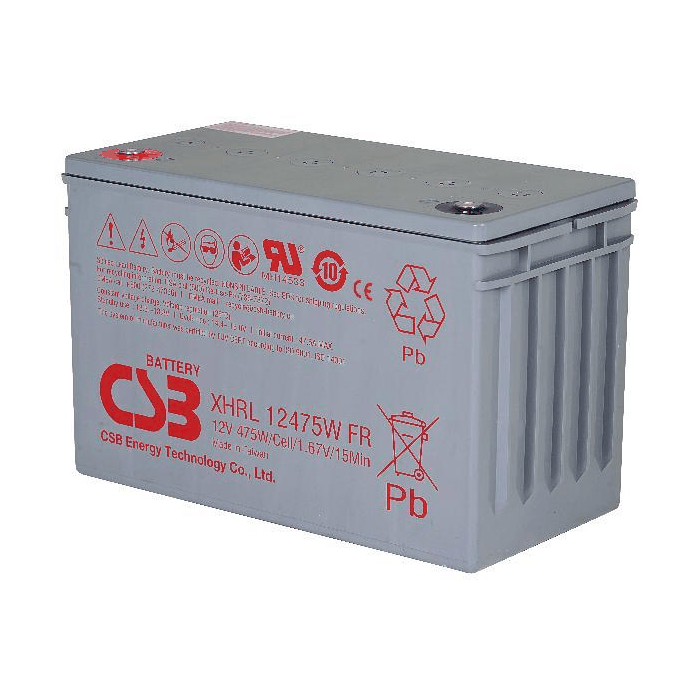

CSB Battery XHRL12475W 12V Valve Regulated Sealed Lead Acid Battery
As a member of the XHRL series, the CSB XHRL12475W is a 12V Valve Regulated Sealed Lead Acid battery designed primarily for high-rate float backup applications such as data center UPS. It delivers 475W at the 15-minute rate and 880.17 W/cell at the 5-minute rate, with a design life of up to 10 years.

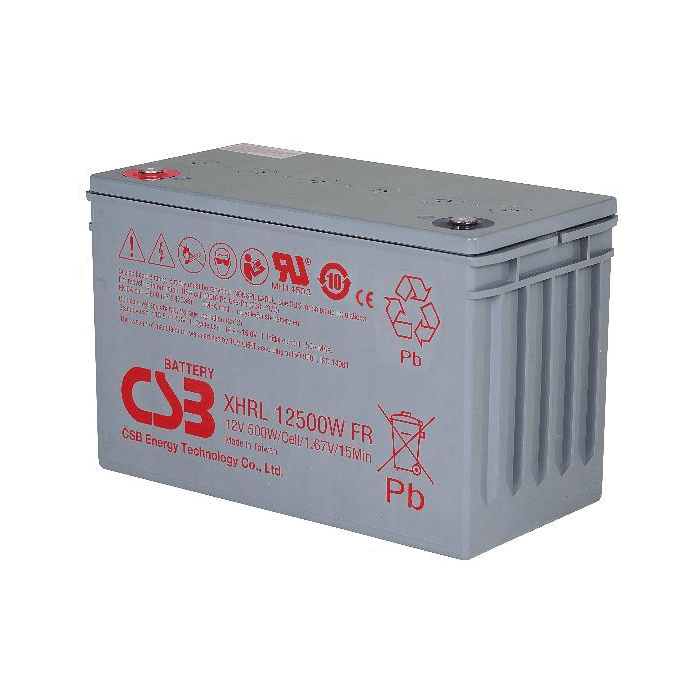

CSB Battery XHRL12500W 12V Valve Regulated Sealed Lead Acid Battery
The XHRL12500W is a 12V Valve Regulated Sealed Lead Acid battery from CSB's XHRL series, utilizing AGM technology. It is primarily designed for high-rate float charge backup needs such as data center UPS, with a 15-minute rate power of 500W, a 5-minute rate of 912.17 W/cell, and a float charge design life of up to 10 years.
12V 620W CSB Battery XHRL12620W VRLA Type
The XHRL12620W is a 12V valve regulated sealed lead acid battery from CSB, utilizing AGM technology with a nominal capacity of 620W at the 15-minute rate. It is primarily designed for high-rate float backup applications such as data center UPS systems, with a design float life of up to 10 years.

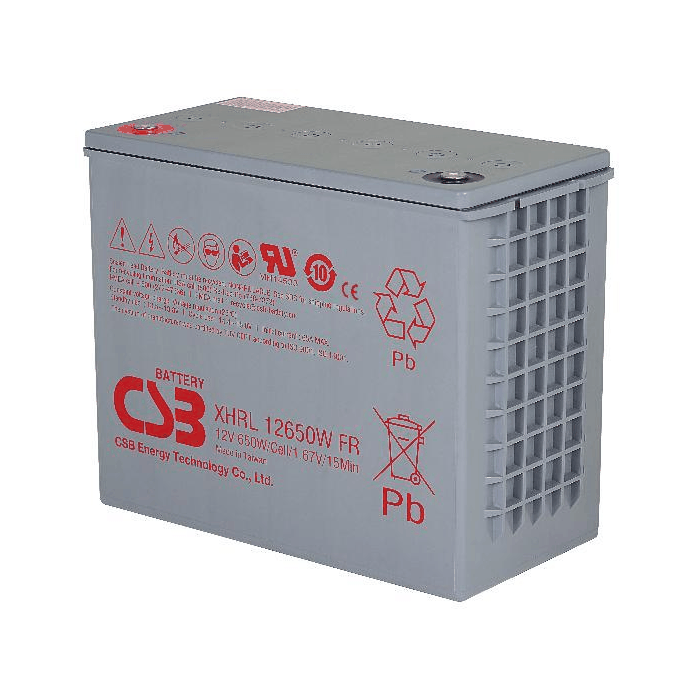

CSB Battery XHRL12650W 12V 650W Valve Regulated Sealed Lead Acid Battery
The CSB XHRL12650W belongs to the XHRL series and is a 12V valve regulated sealed lead acid battery designed primarily for high-rate float backup needs such as data center UPS. Its nominal capacity is 650W @ 15-minute rate, with 5-minute power reaching 1054.83 W/cell and 15-minute power at 651.83 W/cell. The battery uses AGM technology, achieves 99% gas recombination efficiency, and requires no maintenance. Design float life is 10 years under 25°C standby conditions, and over 12 years at 20°C according to Eurobat standards. The case is made of PP material, with a flame-retardant model available. The terminal is an I2 threaded lead alloy that accepts an M6 bolt.
