The CSB MSV Series is a 2V VRLA-AGM valve-regulated sealed lead-acid battery with a large-format, long-life, high-capacity design. Seven models from MSV-200 to MSV-1000, for telecom.
| Image | Model | Specification | Weight | Description |
|---|---|---|---|---|
|

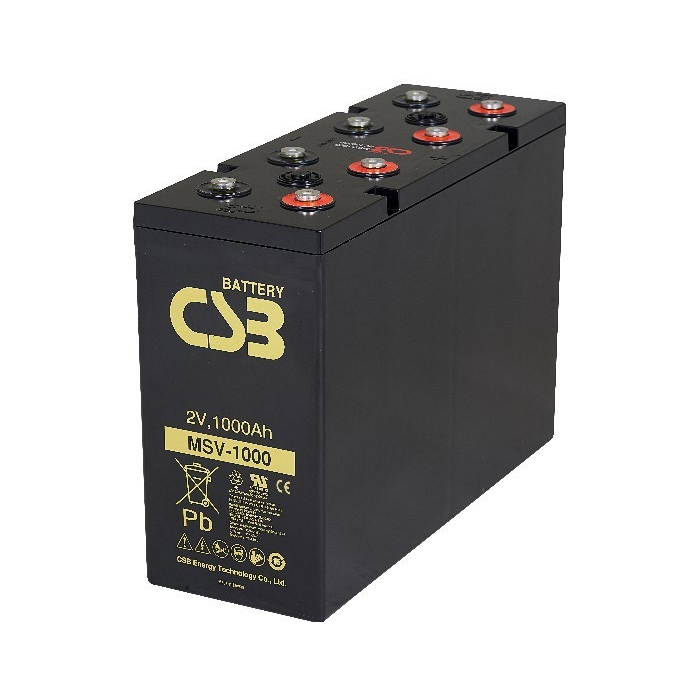

MSV-1000 | 2V 1000Ah | 64.40 kg | Part of the MSV series, the CSB MSV-1000 is a 2V VRLA-AGM battery with a 10-hour rate nominal capacity of 1000Ah. Designed for float charge backup scenarios such as telecom, it offers a maximum design life of 15 years and features a flame-retardant ABS case. |
|

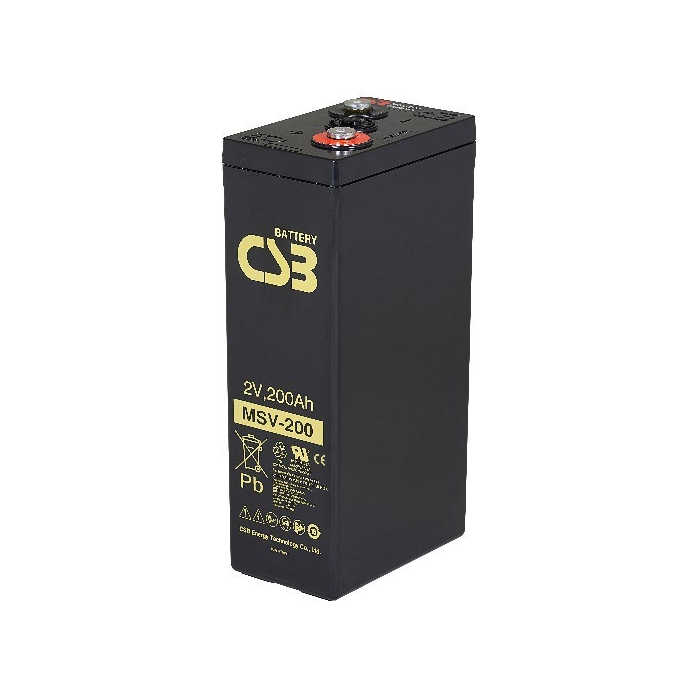

MSV-200 | 2V 200Ah | 13.60 kg | The MSV-200 belongs to CSB's MSV series and is a 2V Valve Regulated Sealed Lead Acid battery with a nominal capacity of 200Ah (10-hour rate). Utilizing AGM technology and a pure lead construction, it is well suited for float backup power applications such as telecom, with a design float life of up to 15 years. |
|

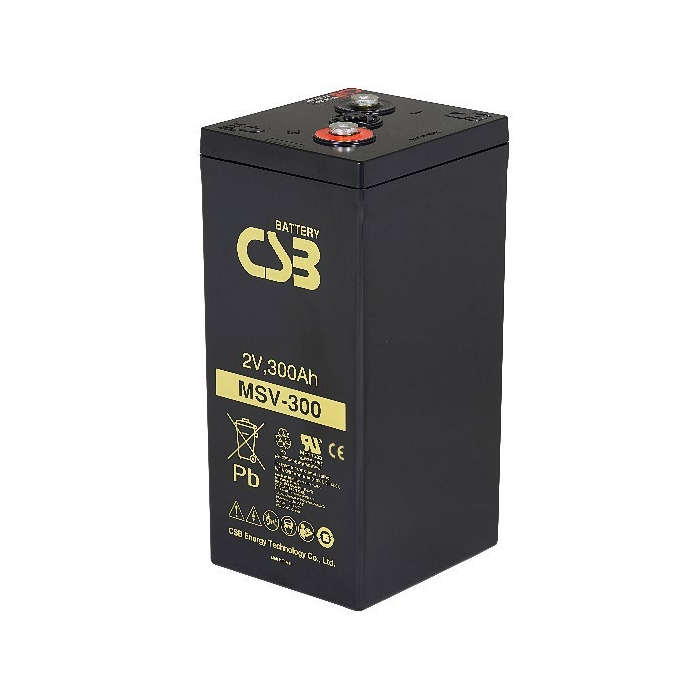

MSV-300 | 2V 300Ah | 18.20 kg | The CSB MSV-300 in the MSV series is a 2V VRLA-AGM battery with a 10-hour rate nominal capacity of 300Ah. It is primarily designed for float-charge backup power scenarios such as telecommunications, utilizing AGM technology, equipped with a flame-retardant ABS case, and offering a design float life of up to 15 years. |
|

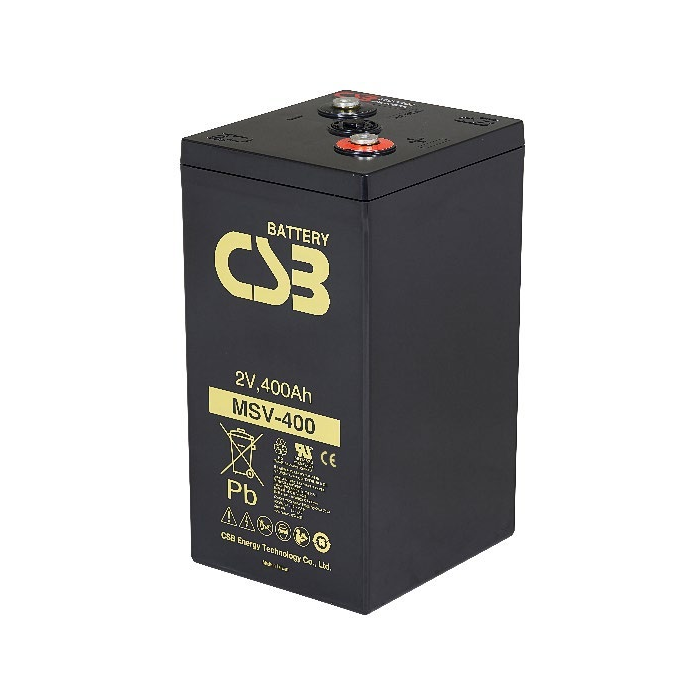

MSV-400 | 2V 400Ah | 24.90 kg | The CSB MSV-400 is a 2V 400Ah Valve Regulated Sealed Lead Acid battery built with AGM technology, primarily designed for telecom and other applications requiring high-capacity float backup power. It offers a design life of up to 15 years, a flame-retardant ABS case, and complies with IEC 60896-21/22 and UL1989 standards. |
|

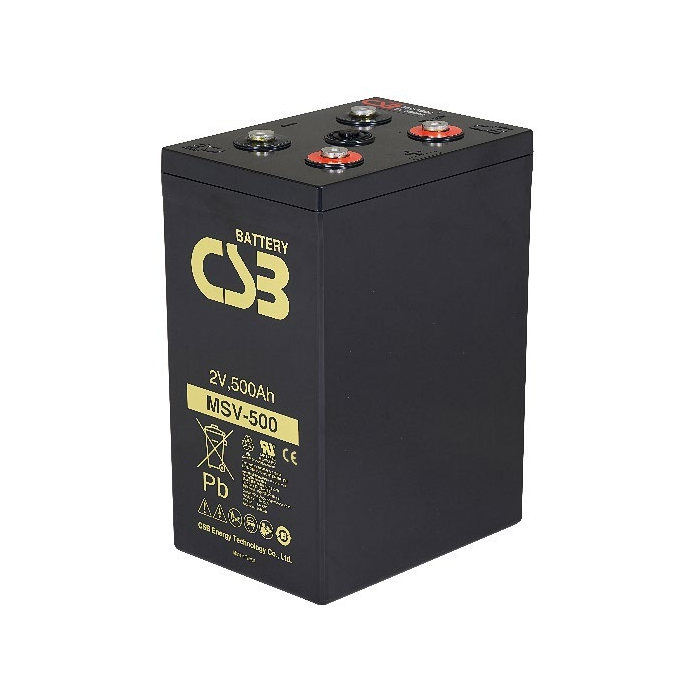

MSV-500 | 2V 500Ah | 31.20 kg | As a member of the MSV series, the CSB MSV-500 is a 2V VRLA-AGM battery with a nominal capacity of 500Ah at the 10-hour rate. It is primarily designed for telecom and other applications requiring large-capacity float backup power, with a float design life of up to 15 years. The case is made of flame-retardant ABS, and the terminals are copper alloy. |
|

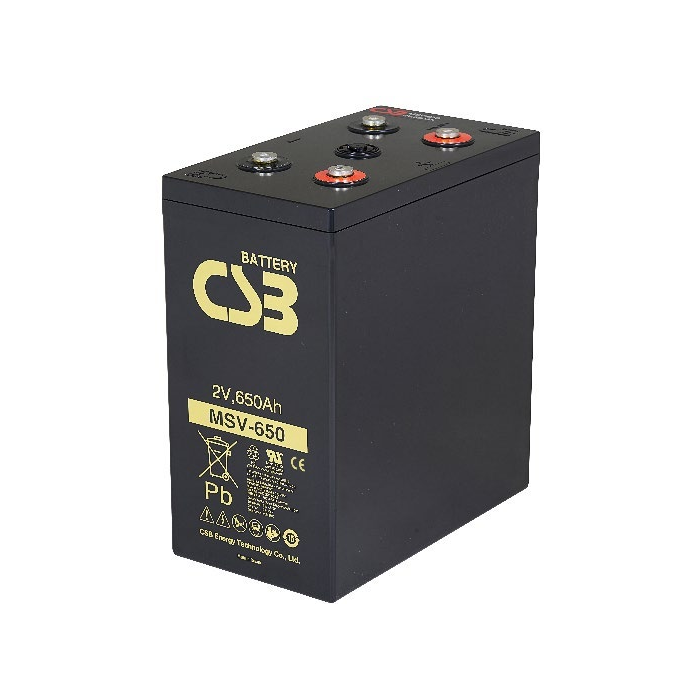

MSV-650 | 2V 650Ah | 41.40 kg | The CSB MSV-650 battery is a 2V 650Ah valve regulated sealed lead acid type, utilizing AGM technology and a pure lead construction. It is primarily designed for high-capacity float backup power applications such as telecom, features a flame-retardant ABS case, and offers a design life of up to 15 years. |
|

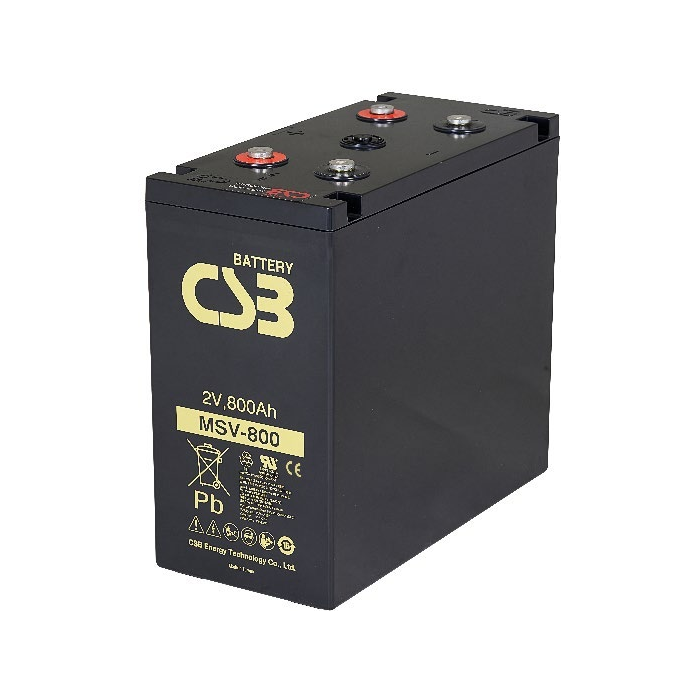

MSV-800 | 2V 800Ah | 50.60 kg | The CSB MSV-800 is a 2V 800Ah Valve Regulated Sealed Lead Acid battery featuring AGM technology and a pure lead construction, designed for high-capacity float backup power applications such as telecom, with a design float life of up to 15 years. |
