The CSB XTV Series comprises eight 12V top-terminal VRLA-AGM pure lead batteries, from XTV12120 to XTV121100, engineered for indoor and outdoor telecom broadband applications.
| Image | Model | Specification | Weight | Description |
|---|---|---|---|---|
|

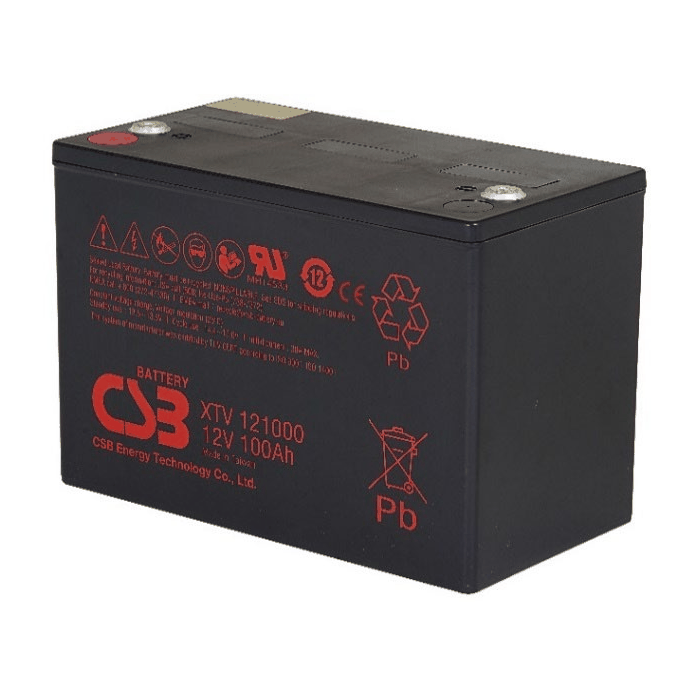

XTV121000 | 12V 100Ah | 30.20 kg | Designed for telecom float backup power applications, the CSB XTV121000 is a 12V 100Ah valve regulated sealed lead acid battery that combines AGM and pure lead technology, with a design life of up to 12 years at 25°C under float charge conditions. |
|

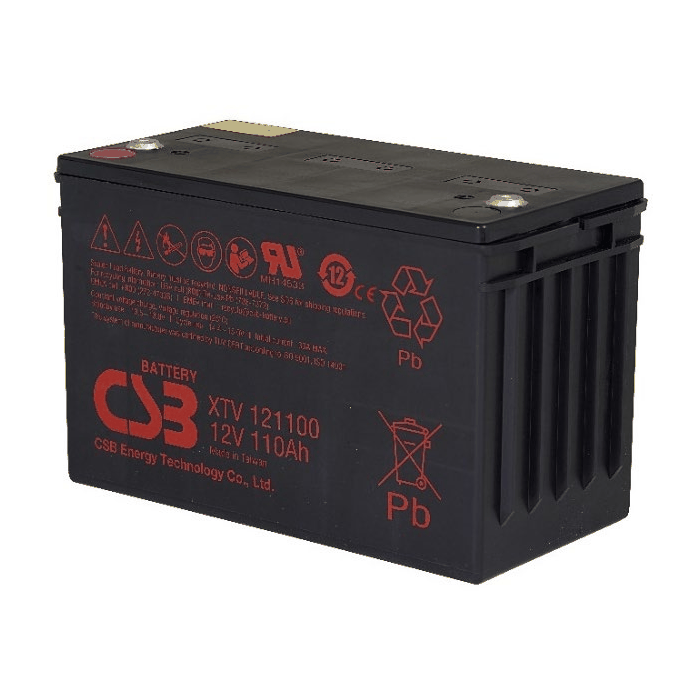

XTV121100 | 12V 110Ah | 34.20 kg | The CSB XTV121100 in the XTV series is a 12V valve regulated sealed lead acid battery with a 20-hour rate nominal capacity of 110Ah. Combining AGM and pure lead technologies, it is designed for indoor and outdoor float backup in telecom broadband applications, with a float design life of up to 12 years. |
|

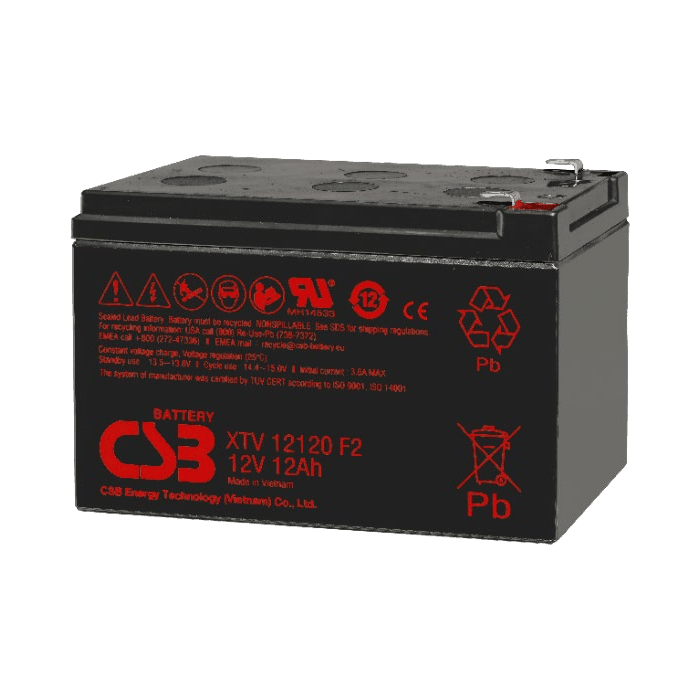

XTV12120 | 12V 12Ah | 4.10 kg | The XTV12120 is a 12V 12Ah Valve Regulated Sealed Lead Acid battery from CSB, part of the XTV Pure Lead series, designed primarily for telecom broadband applications. Using AGM technology, the battery achieves 99% gas recombination efficiency, is maintenance-free, offers a float charge design life of up to 12 years, and can be used indoors and outdoors under extreme temperature conditions. |
|

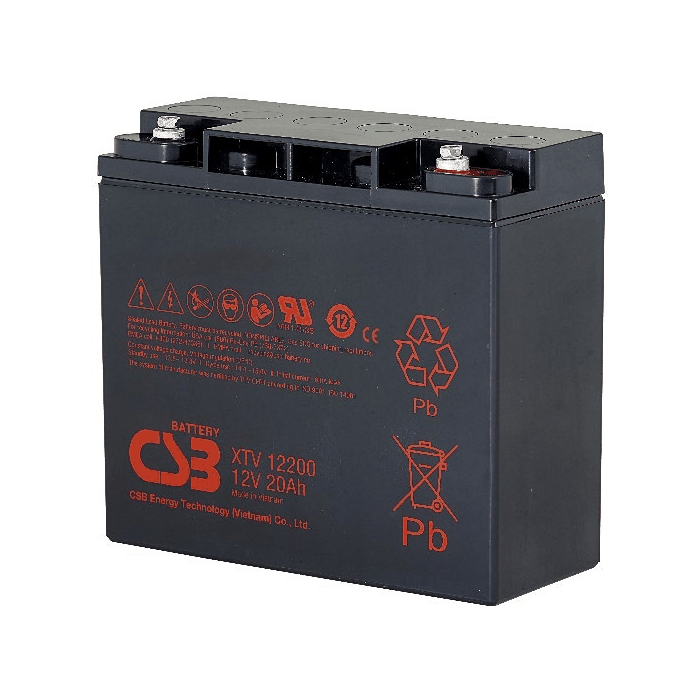

XTV12200 | 12V 20Ah | 6.35 kg | The CSB XTV12200 is a 12V 20Ah valve regulated sealed lead acid battery that combines AGM technology with pure lead plates, designed specifically for indoor and outdoor float backup power in telecom broadband applications. It offers a float life of up to 12 years and meets IEC 61056-1/2:2012 and UL1989 standards. |
|

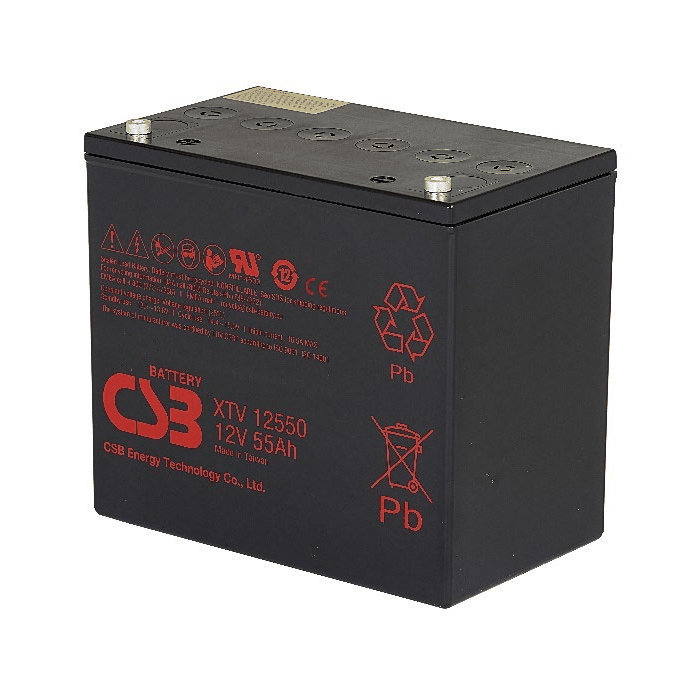

XTV12550 | 12V 55Ah | 17.90 kg | CSB Battery XTV12550 is a 12V 55Ah valve regulated sealed lead acid battery, combining pure lead and AGM technology, designed for telecom float standby, with a design life of up to 12 years, suitable for indoor and outdoor installation. |
|

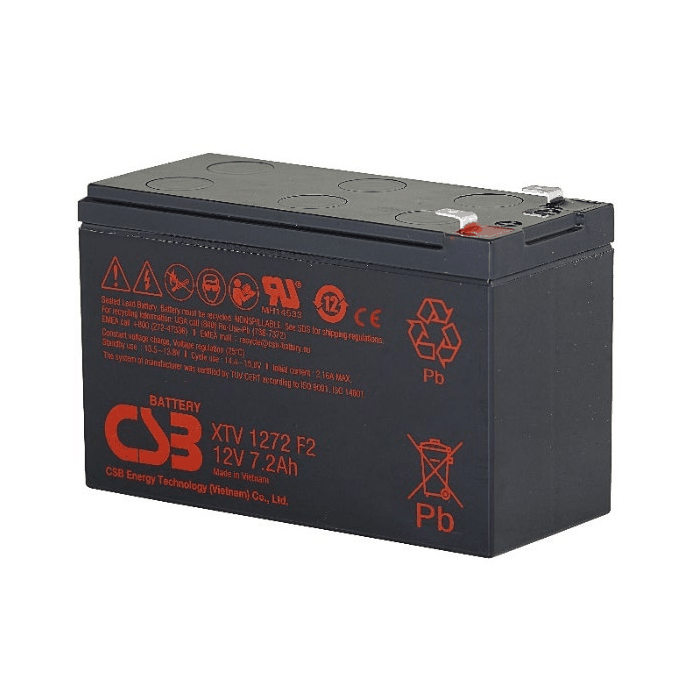

XTV1272 | 12V 7.2Ah | 2.57 kg | The XTV1272 is a 12V valve regulated sealed lead acid battery in CSB's XTV series, combining AGM and pure lead technology. It has a nominal capacity of 7.2Ah (20hr), a float charge voltage range of 13.5-13.8Vdc, and a maximum design life of 12 years, primarily serving indoor and outdoor backup power for telecom applications. |
|

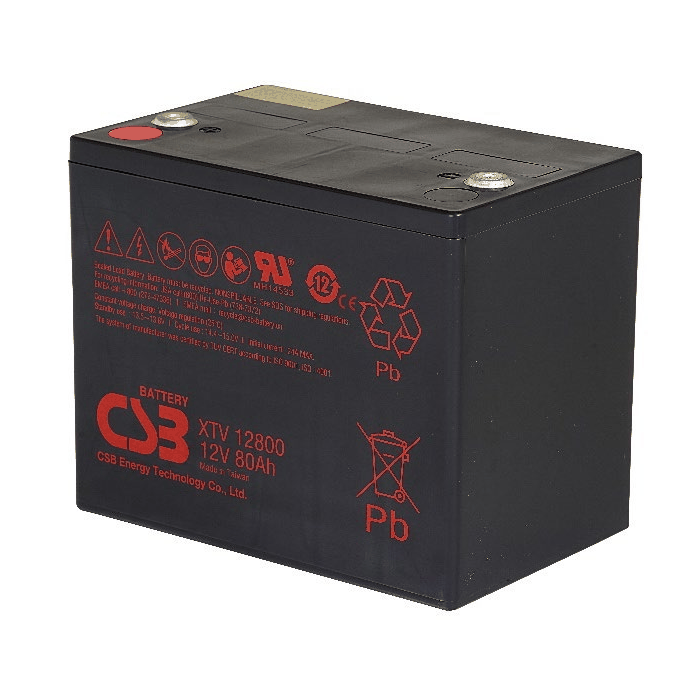

XTV12800 | 12V 80Ah | 25.50 kg | The CSB XTV12800 from the XTV series is a 12V 80Ah valve regulated sealed lead acid battery. Built with AGM and a pure lead construction, it is designed for indoor and outdoor float backup power in telecom broadband applications, with a design life of up to 12 years. |
|

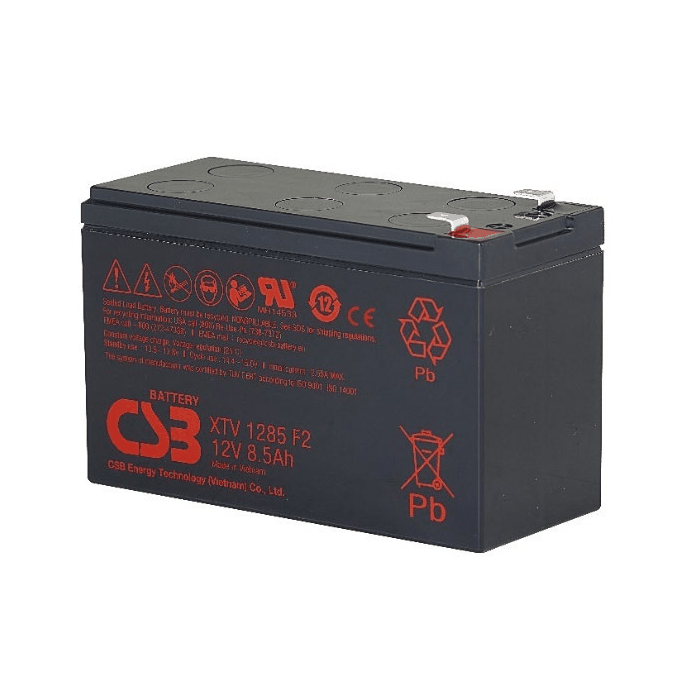

XTV1285 | 12V 8.5Ah | 2.62 kg | The XTV1285 comes from the CSB XTV series and is a 12V Valve Regulated Sealed Lead Acid battery. At the 20-hour rate, the nominal capacity is 8.5Ah; combining pure lead and AGM technology, it can be used for indoor and outdoor backup power in telecom broadband applications. The design float life can reach up to 12 years. |
