CSB XPL Series 12V Pure Lead Large-Capacity Battery for Data Center UPS Backup Power

The CSB XPL Series is a 12V top-terminal VRLA-AGM pure lead large-capacity battery for long-duration backup power in data center UPS. Eight models: XPL2000, XPL2200, XPL2700, XPL3500, XPL4200, XPL4700, XPL5700, XPL6700.

Model	Specification	Weight	Description

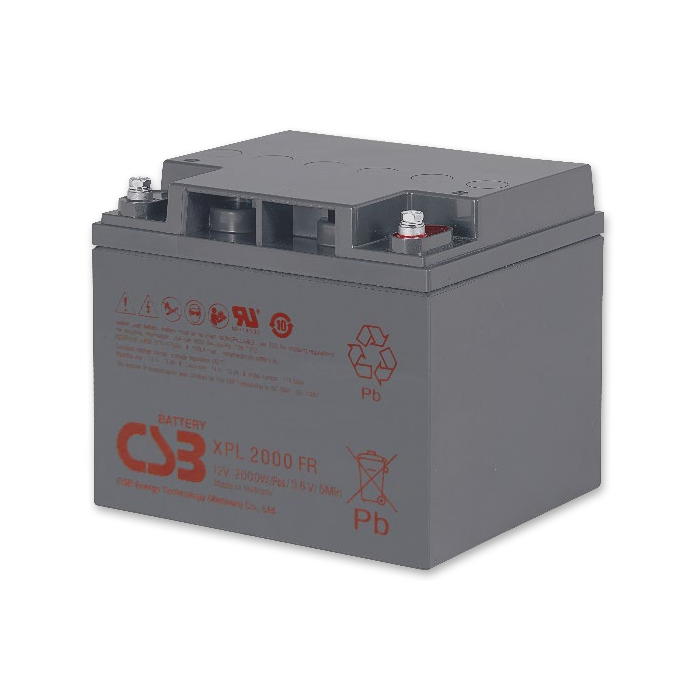

XPL2000	12V 2000W	13.58 kg	The XPL2000 is part of CSB's XPL series. It is a 12V Valve Regulated Sealed Lead Acid battery that combines pure lead and AGM technology, delivering 2000W at the 5-minute rate to meet long-duration backup needs such as data center UPS, with a float charge design life of up to 10 years.

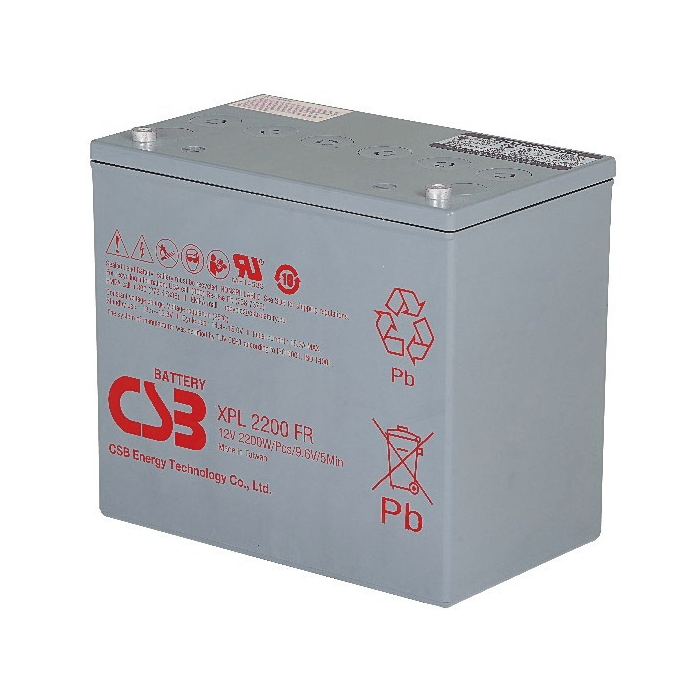

XPL2200	12V 2200W	16.65 kg	The CSB XPL2200 is a 12V valve regulated sealed lead acid battery in the XPL series, combining pure lead and AGM technology with a nominal capacity of 2200W @5min-rate, meeting the long-duration backup power needs of data center UPS and similar applications.

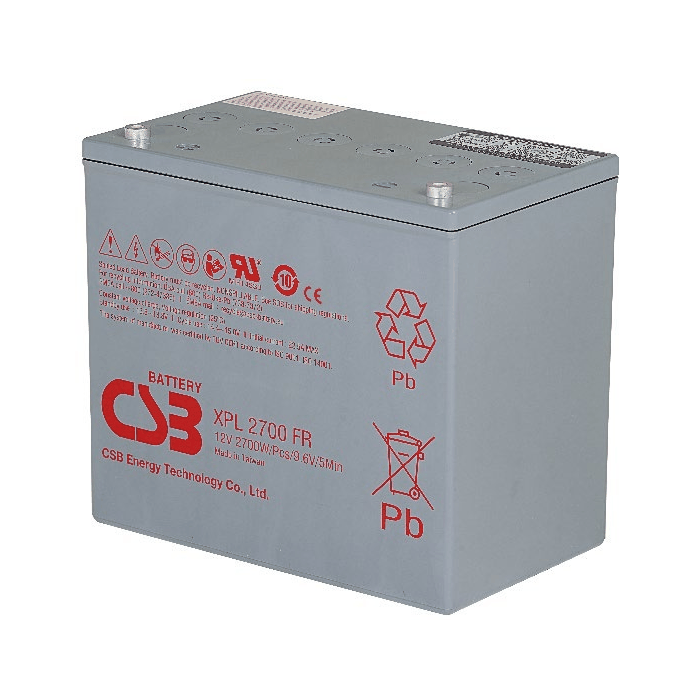

XPL2700	12V 2700W	18.52 kg	The XPL2700 is part of CSB's XPL series, a 12V VRLA battery with a nominal capacity of 2700W @5min-rate. Utilizing AGM and pure lead technology, it offers a long design float life and is primarily intended for extended backup power applications such as data center UPS systems.

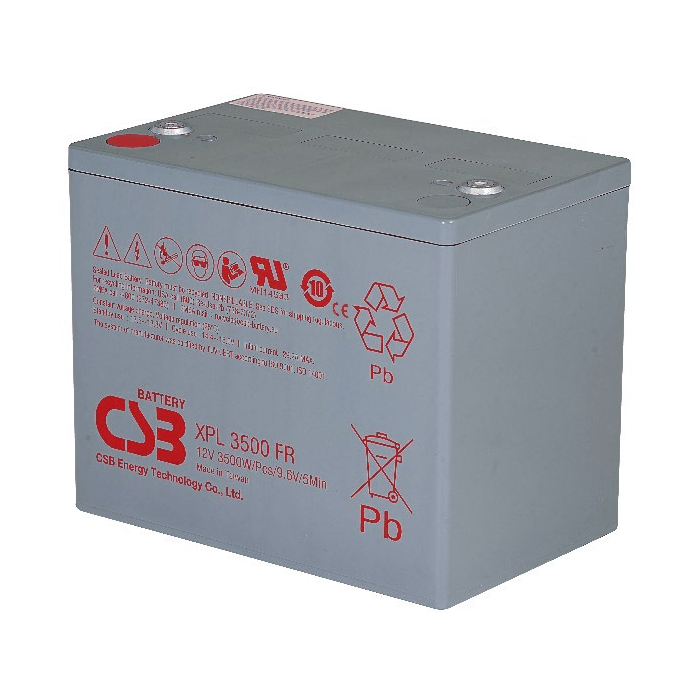

XPL3500	12V 3500W	25.80 kg	The XPL3500 is a 12V Valve Regulated Sealed Lead Acid battery in the CSB XPL series. Using pure lead and AGM technology, it delivers a nominal capacity of 3500W at the 5-minute rate, making it suitable for long-duration backup needs such as data center UPS, with a design float life of up to 10 years.

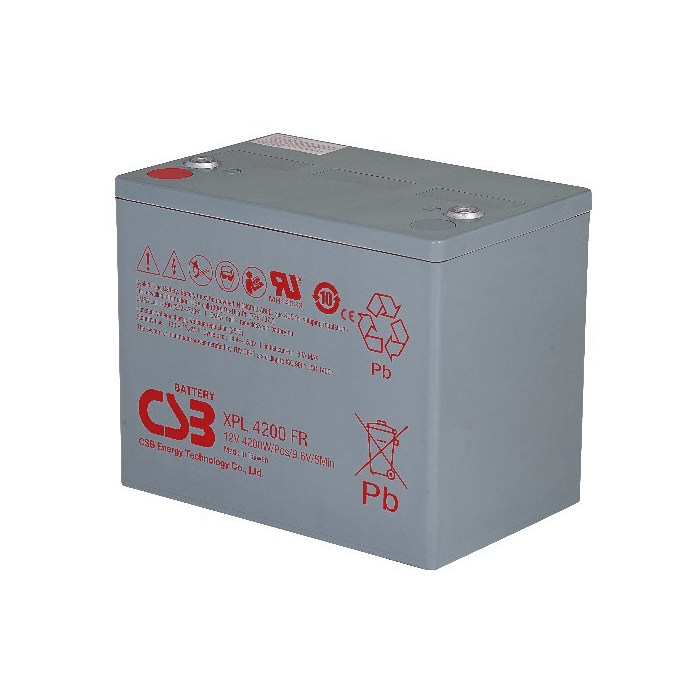

XPL4200	12V 4200W	28.20 kg	Part of the XPL series, the CSB XPL4200 is a 12V valve regulated sealed lead acid battery that uses pure lead and AGM technology, designed specifically for float standby applications such as data center UPS. It delivers 4200W at the 5-minute rate and has a design life of up to 10 years.

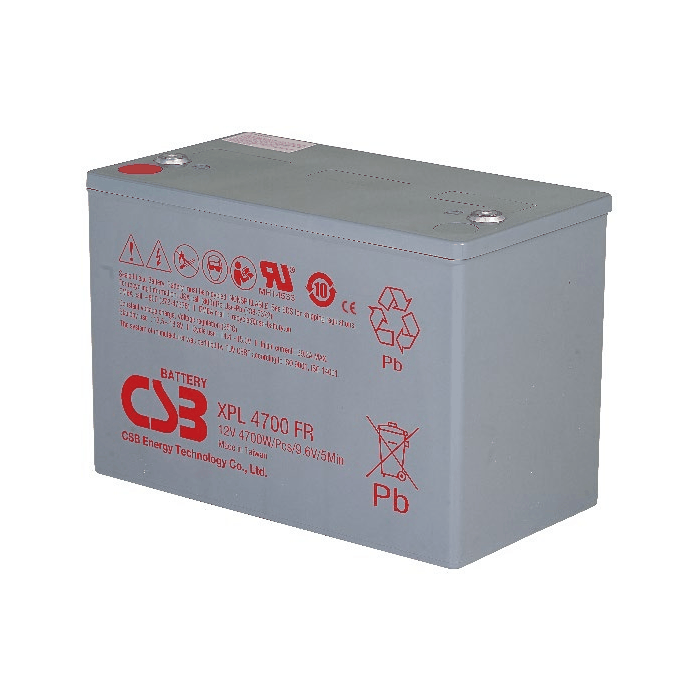

XPL4700	12V 4700W	33.00 kg	As a 12V high capacity pure lead valve regulated sealed lead acid battery, the CSB XPL4700 utilizes AGM technology and is primarily designed for long-duration backup power applications such as data center UPS. Its 5-minute rate power is 4700W, and its design float life can reach up to 10 years.

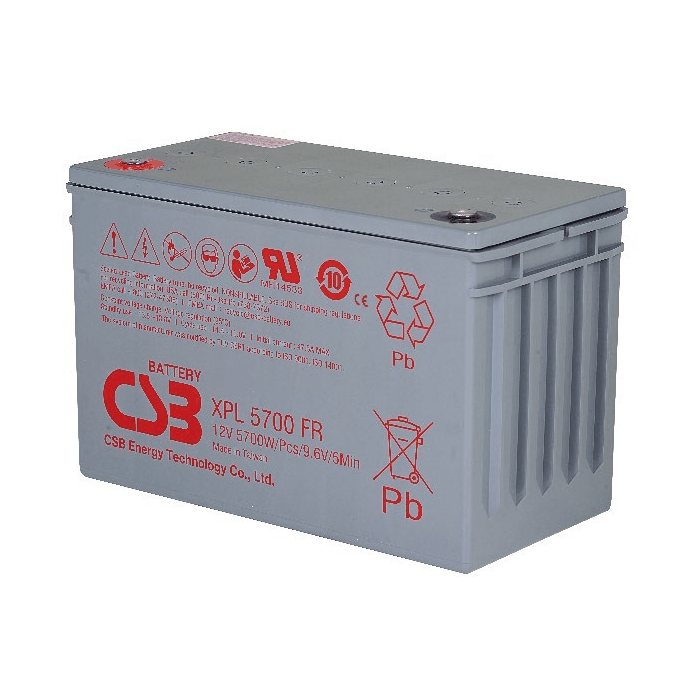

XPL5700	12V 5700W	36.90 kg	The XPL5700 is a 12V Valve Regulated Sealed Lead Acid battery in the CSB XPL series, with a nominal capacity of 5700W@5min-rate. Combining AGM technology with a pure lead construction, it offers a design float life of up to 10 years and is widely used in long-duration backup power scenarios such as data center UPS.

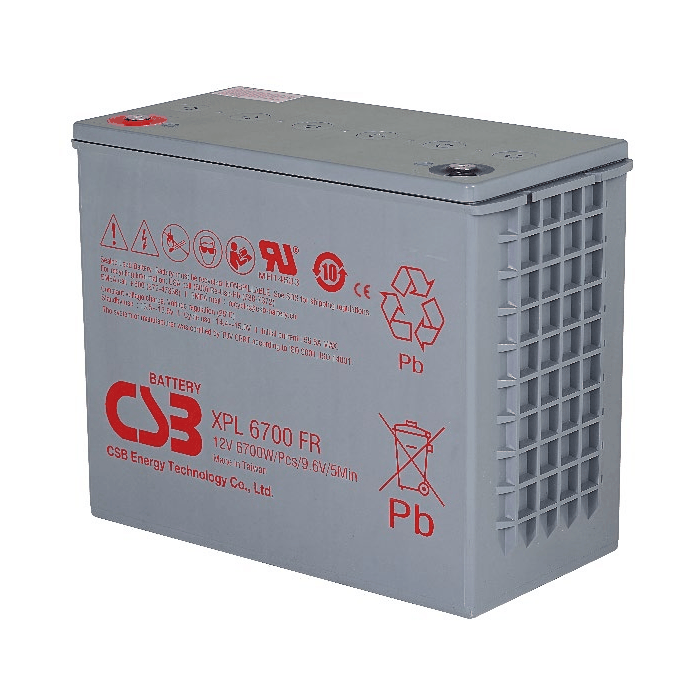

XPL6700	12V 6700W	47.90 kg	As a member of the XPL series, the CSB XPL6700 is a 12V Valve Regulated Sealed Lead Acid Battery that combines pure lead construction with AGM technology. It delivers a rated capacity of 6700W at the 5-minute rate and is primarily designed for long-duration backup power needs such as data center UPS systems.
