For data center UPS, the CSB UPS Series offers high-power pure lead VRLA-AGM batteries in six models — RUM6290, UPS122406, UPS123606, UPS123607, UPS12460 and UPS12580 — with 6V and 12V top terminals.
| Image | Model | Specification | Weight | Description |
|---|---|---|---|---|
|

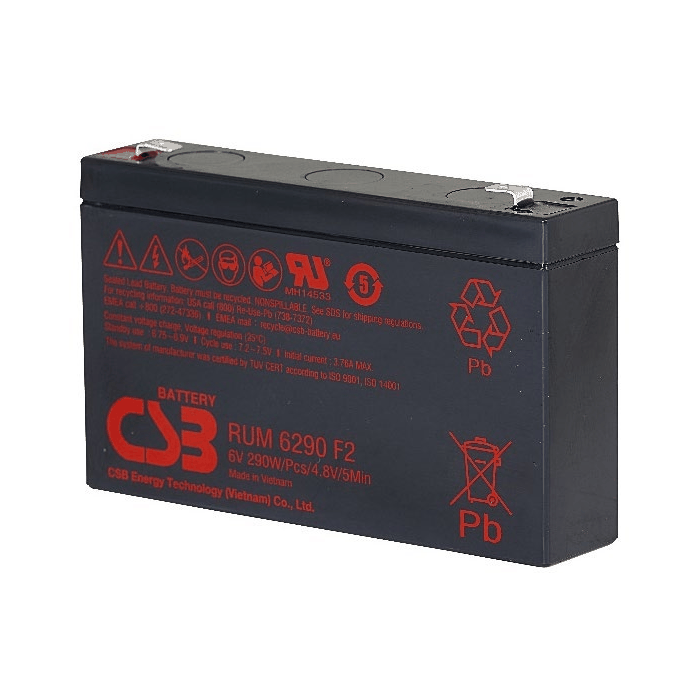

RUM6290 | 6V 290W | 1.46 kg | The CSB RUM6290 is a 6V valve regulated sealed lead acid battery in the UPS series, combining AGM and pure lead technology in its construction, with a 5-minute rate power of 290W. This battery is suitable for float standby applications such as data center uninterruptible power supplies, with a design float life of up to 5 years. |
|

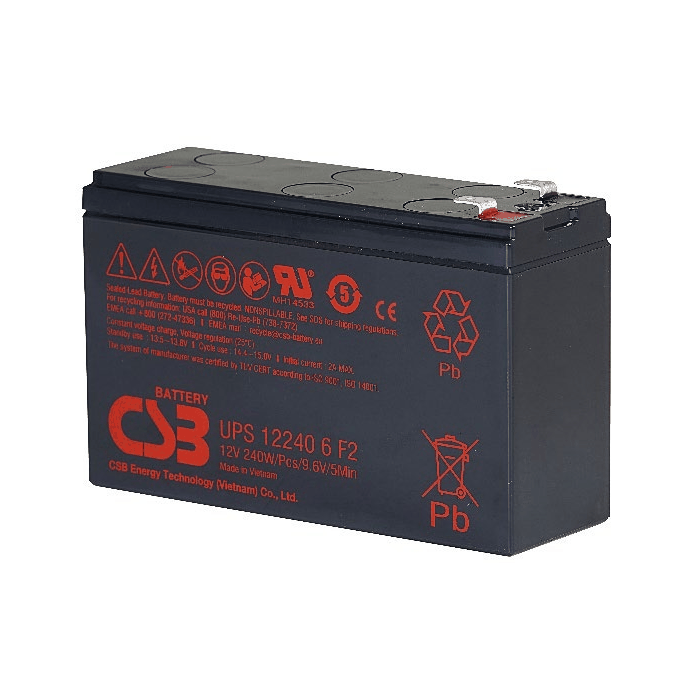

UPS122406 | 12V 240W | 1.46 kg | CSB UPS122406 is a 12V pure lead Valve Regulated Sealed Lead Acid battery with 240W 5-minute rate power, designed for data center UPS, suitable for float charge backup scenarios, with a design life of 5 years. |
|

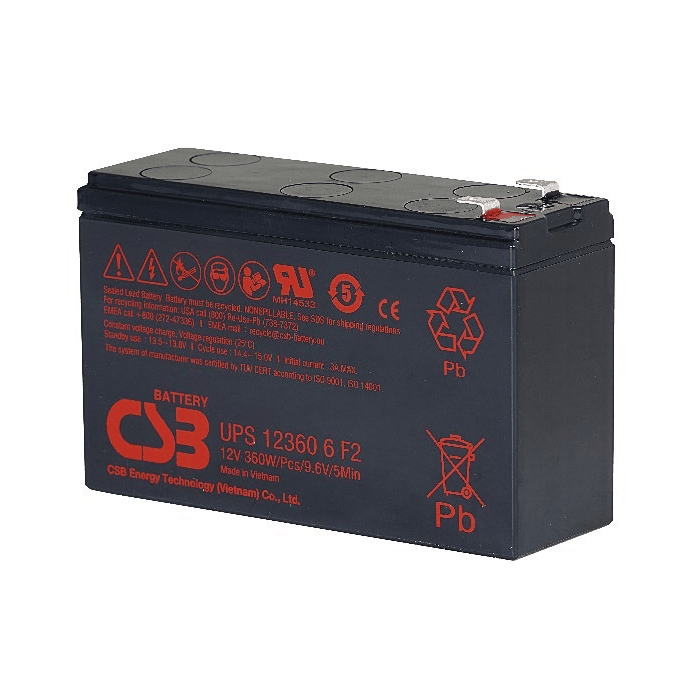

UPS123606 | 12V 360W | 1.97 kg | The CSB UPS123606 is a 12V Valve Regulated Sealed Lead Acid battery in the UPS series, with a nominal capacity of 360W at the 5-minute rate. Combining a pure lead construction with AGM technology, it primarily serves the float charge backup needs of data center uninterruptible power supplies. |
|

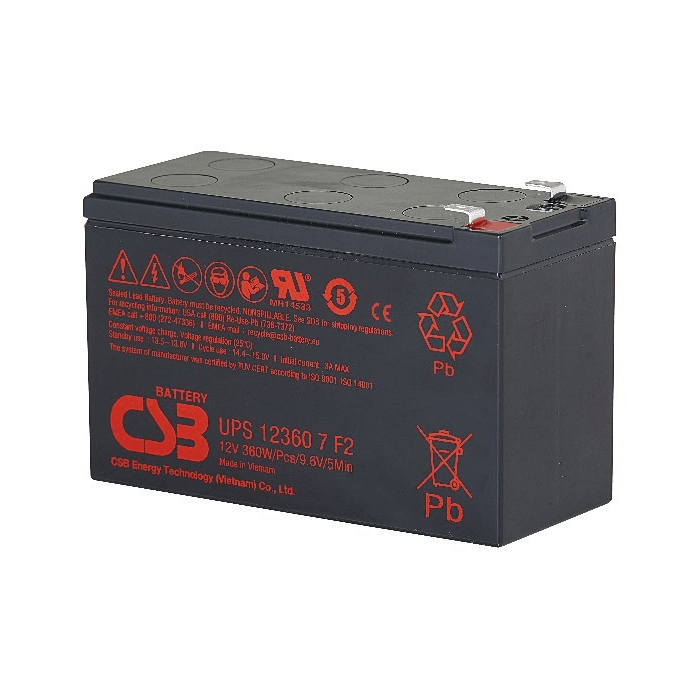

UPS123607 | 12V 360W | 2.00 kg | Designed for float charge backup power in data center UPS applications, the CSB UPS123607 belongs to the UPS series and is a 12V valve regulated sealed lead acid battery; its 5-minute rate nominal capacity reaches 360W and it combines pure lead and AGM technologies. |
|

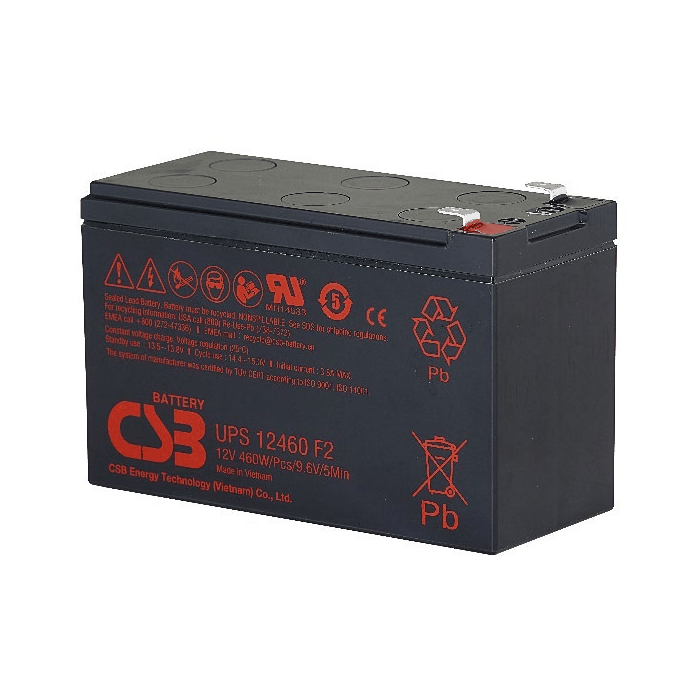

UPS12460 | 12V 460W | 2.50 kg | The CSB UPS12460 is a 12V valve regulated sealed lead acid battery in the UPS series, featuring pure lead construction and AGM technology, delivering 460W at the 5-minute rate. It is maintenance-free and designed specifically for float charge standby service in data center uninterruptible power supplies. |
|

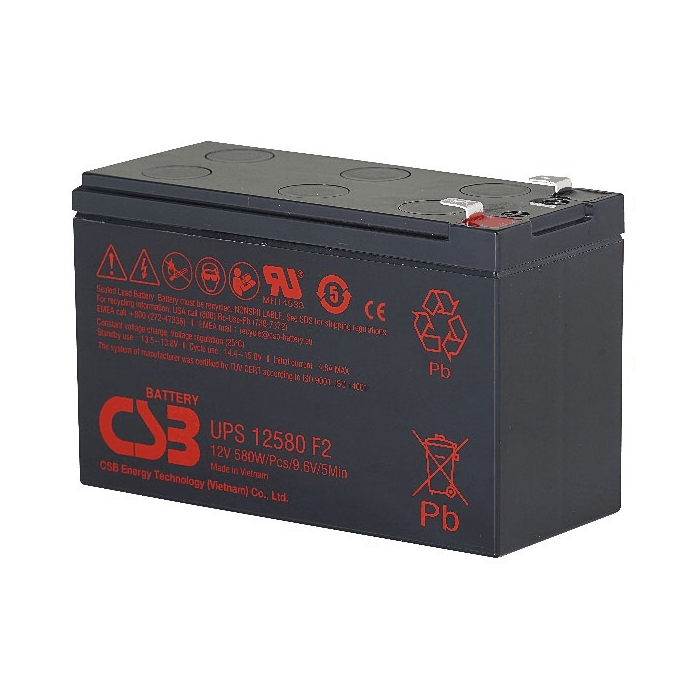

UPS12580 | 12V 580W | 2.83 kg | Designed for data center UPS, the CSB UPS12580 is a 12V pure lead VRLA-AGM battery with a nominal capacity of 580W @5min-rate, capable of high-rate discharge and a design life of up to 5 years. |
A total of 1 page 6 data
